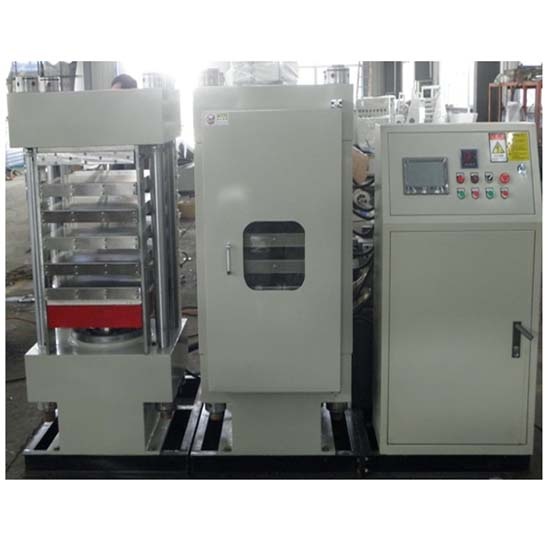

Product name : Plastic Card Laminator YLL-25C 420×520
Item : YLL-25C
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

Plastic Card Laminator YLL
-25C 420×520
(Aluminum alloy template, PLC Controlled, 2 towers, 5 cool+5 hot openings)

Feature Description

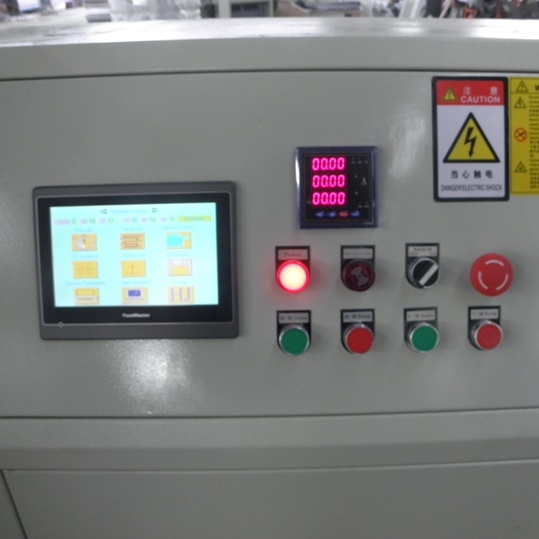

1.    It is controlled by Programmable logic controller with intelligent man-machine interface touch screen for easy operation. Many types of lamination parameters can be automatically saved;

2.    In order to ensure maximum protection on the chips in the INLAY lamination process, the model YLL-25B applies special aluminum alloy lamination templates in the hot tower.

3.    It is specially designed for massive lamination of various plastic cards including contactless cards and INLAY sheets.

4.    The heating tower is installed with external thermal insulation housing to better hot lamination effect, and such design can greatly reduce energy consumption.


Technical Parameters

   1.      PVC sheet layout: 5×5, 3×8, 4×8

   2.      Laminating plate size: 420×520mm

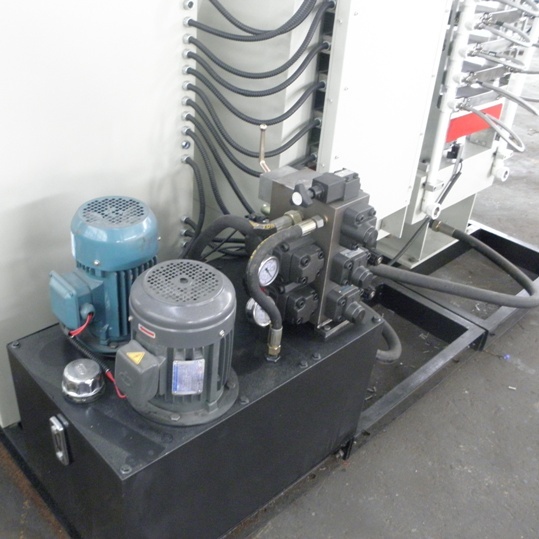

   3.      Hydraulic cylinder number: 2 big cylinders (1 for each tower)

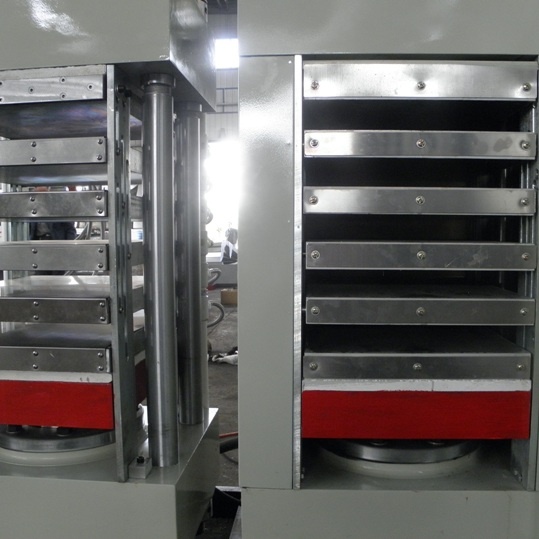

   4.      Daylight number/distance: 5 daylight 2 tower/50mm

   5.      Pressure precision: +/-0.1Mpa

   6.      Work pressure: 0-16Mpa (adjustable).

   7.      Temperature control precision: +/-1

   8.      Heating temperature: 200

   9.      Power: 23 KW (Maximum)

   10.    Power supply: AC380V 50/60HZ 3 phase 5 wires

   11.    Dimension: 2500mm×1200mm×1800mm

   12.    Gross weight: 3200 kg
