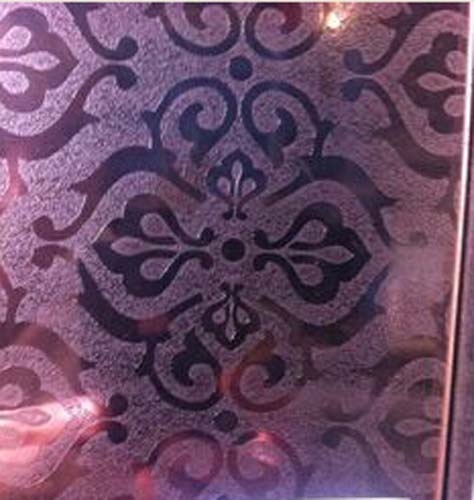

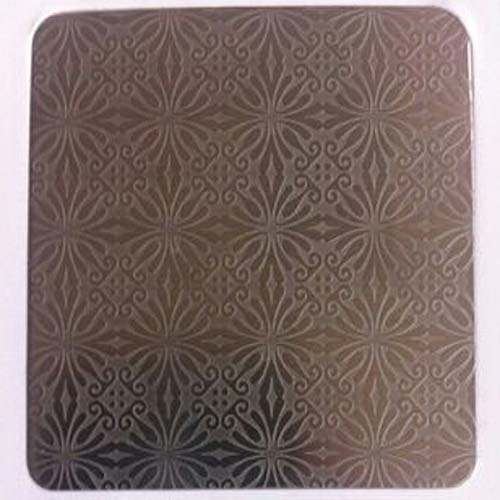

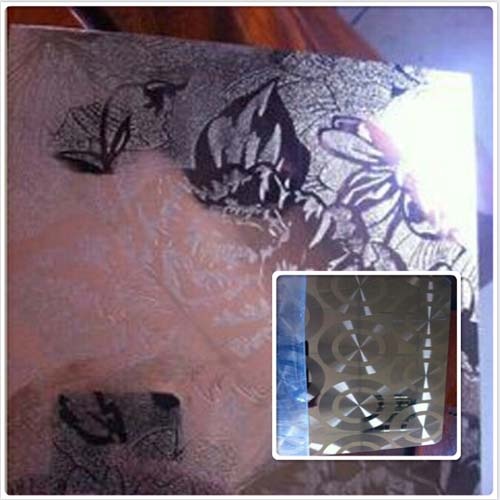

Product name : Patterned lamination steel plate
Item : Patterned lamination steel plate
 Enlarge Image                   Back



Details:
 Special pattern lamination steel plates are mainly used for personalized pattern finish card lamination. It can well ensure perfect plastic card surface finish after lamination. Our plates are being widely used by many card factories in both China and foreign countries worldwide.



Key Features:

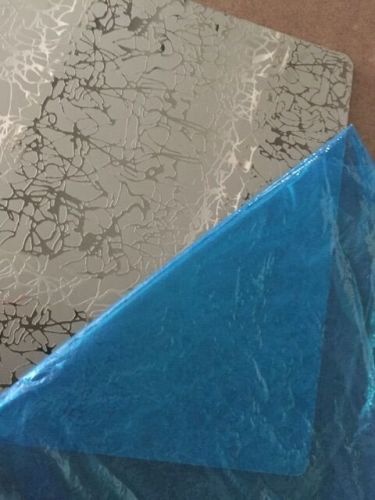

1. One side (pattern side) is covered with protection foils (blue thin films) to ensure good protection.

2. Only one side has the special pattern.

3. There are no scratches and dust on pattern surface.

4. The edges are smooth and deburred with the round curved corners.



Technical Parameters:



Plate size(L×W) A4, A3 or custom-made size

Plate thickness  1.0 mm (Thickness tolerance: ±0.05mm)

Dimension tolerance: ±1mm for length and width.

Plate flatness level: maximum 1 mm.m

Surface pattern:   special pattern

Surface hardness:  HRC80±20

Thermal transmission:  0.04cal/℃.cm.sec at 20℃

Packaging box: solid plywood carton with soft cushion protection inside.
