Product name : Sequential Number Card Puncher YLP-SN
Item : YLP-SN
 Enlarge Image                   Back
             [Next Product]→


Details:

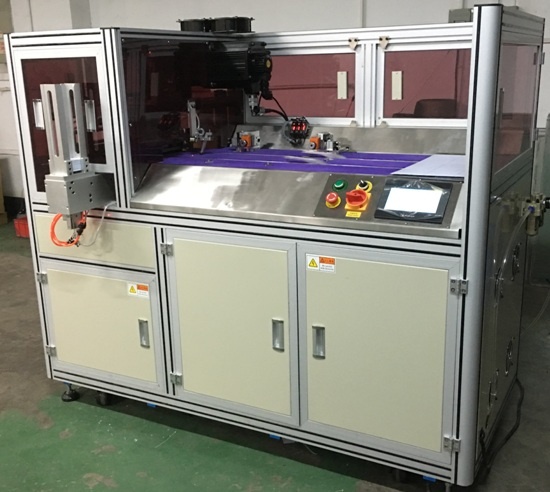

                                                                Sequential Number Card Puncher YLP-SN
Sequential Number Card Puncher YLP-SN is specially designed for cutting the printed big sheets (such as 3*8, 4*8 or 5*5 layout) into the standard CR80 cards in a sequential and precise way.

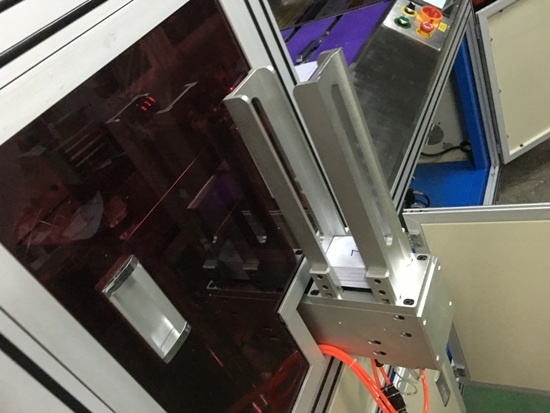

The machine applies the powerful servo motor system as the punching power to ensure more reliable and easy punching. Professional card collecting structure is used to collect serial number cards or standard cards into one card magazine.



Key functional feature

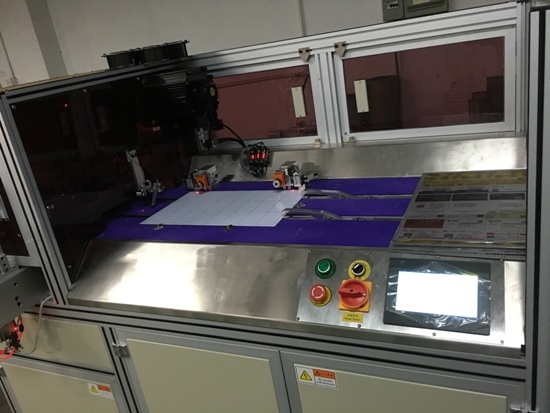

1. High sensitivity optical fiber sensor is used to support the imported servo feeding system to ensure higher punch precision. The punching space position is adjustable by touch screen.

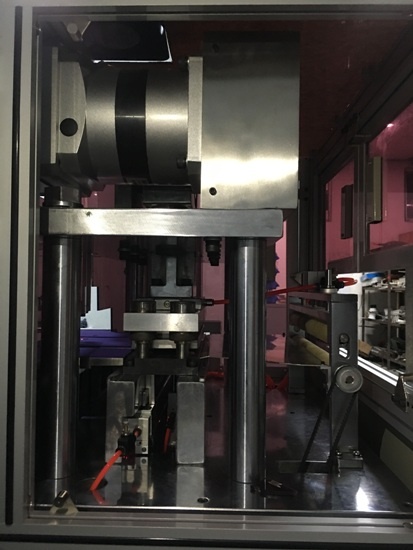

2. The durable servo motor system is applied to work as the punching power, which has lower noise, failure ratio and more reliable operation.

3. The machine is controlled with PLC system. It can punch automatically after the big sheet is manually loaded.

Technical Parameter:

Power Supply: AC 380V/50 HZ

Material: Various plastic sheets including PVC, ABS, PETG, etc.

Total Power: 3.5KW

Material Size: 3X8, 4X8 or 5X8

Air Source: 6 kg/c(Dry)

Speed:  9000~12000 pcs /hr

Air Consumption: 70L/min

Control Method: PLC programming+ servo system

Weight: around 800Kg

Operator: 1 person

Precision: ±0.10mm

Dimension: L1700×W830×H1520mm
