Products > Magnetic card encoder > > Mini Card Data Encoder YDE-1 Model 2017
Product name : Mini Card Data Encoder YDE-1 Model 2017
Item : YDE-1
 Enlarge Image                   Back
             [Next Product]→


Details:

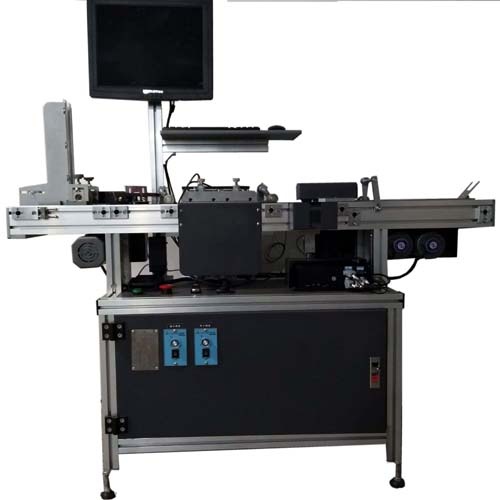

Mini Card Data Encoder YDE-1 Model 2017

 Mini Card Data Encoder YDE-1 Model 2017 is designed to encode the RFID chips and encode the magnetic stripe cards in a reliable way.

It is designed to realize the following card data processing functions:

1)    RFID card electrical performance test (check chip circuit inside RFID card good or not, if not good, the bad cards will be rejected);

2)    RFID card chip data reading, data writing or password change (1 RFID encoding head is applied, It can read UID from such RFID chips including Mifare S50, S70, Desfire MOA8, Ultralight, Plus, Ntag203, Ntag213, ICODE 2, FUDAN and KUNRUI chips. It can write data or change initial passwords in such RFID chips including Mifare S50, S70, Ultralight, Ntag203, Ntag213, ICODE 2, FUDAN and KUNRUI chips.)

3)    Encode Magnetic stripe with the source data file (upper single-side magnetic stripe writing function) ;

4)    Encode magnetic stripe with the RFID Chip data read by RFID encoding unit.

Basic configuration

Card feeding magazineRFID encoding unit (1-head model) →Magnetic Stripe encoding unit card rejection box→Good card collection unit

Technical Parameter

1.    Speed: 8000 cards/hour for magnetic encoding operation.

6000-7000 cards/hour for RFID chip reading operation.

2000- 4000 cards/hour for Chip data writing operation.

2.    Magnetic Record Density: 210 BPI for track 1; 75 or 210 BPI for track 2; and  210 BPI for track3

3.    Applicable Magnetic tripe: HiCo/LoCo, 300 oe-4000 oe, 3 tracks, 12.7mm wide

4.    Applicable Card type: Standard CR80 card, 0.3mm-1mm thickness

5.    Power supply: AC220V, 50/60Hz

6.    Power :1kW

7.    Net Weight:113kg

8.    Machine size: L1400×W400×1300mm

9.    Package size &weight: 1 plywood case, GW 165KG,  L1550×W550×1380mm

10. Magnetic writing head service lifetime:  200,000 to 300,000 times

11. Magnetic reading head service lifetime: 400,000 to 500,000 times.
